HUAWEI EG8145X6 WiFi Gpon ONU Router Optical Network Terminal

Brand Name : HUAWEI

Model Number : wifi6 Eg8145X6

Certification : CE ROHS Anatel

Place of Origin : China

MOQ : 50pcs

Price : Negociatable

Supply Ability : 10000pcs/Week

Delivery Time : 7-15days

Packaging Details : Carton Box

Payment Terms : T/T,Western Union

UNI : 4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6

NNI : GPON

Maximum Power Consumption : 18 W

Antenna : External antenna

Dimensions (H x W x D) : 35 x 195 x 125 mm (without external antenna and pads)

Installation Mode : Desktop

Contact Now

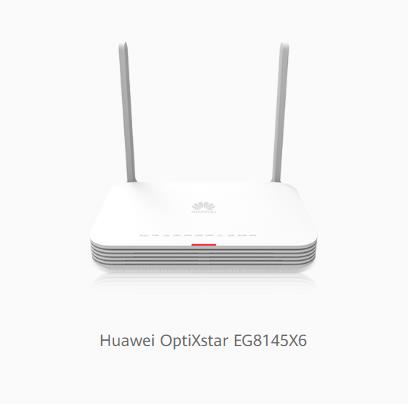

HUAWEI EG8145X6 WiFi Gpon ONU Router Optical Network Terminal

HUAWEI EG8145X6 Optixstar Wi-Fi 6 WiFi6 WiFi Gpon ONU Router

EG8145X6 is an intelligent Wi-Fi 6 WiFi6 routing-type Optical Network Terminal (ONT) that uses Gigabit Passive Optical Network (GPON) technology to offer ultra-broadband access, high performance, and wide coverage for users. With high forwarding performance - ensuring an exceptional experience for voice, data, and High Definition (HD) video services - as well as future-oriented service support capabilities and visualized network management, OptiXstar EG8145X6 helps enterprises construct powerful all-optical access solutions.

Specifications

Parameters Huawei OptiXstar EG8145X6
Dimensions (H x W x D) 35 x 195 x 125 mm (without external antenna and pads)
Weight (Without Power Adapter) Approximately 372 g
Operating Temperature 0-40°C
Operating Humidity 5-95% RH (non-condensing)
Power Adapter Input 100-240 V AC, 50/60 Hz
System Power Supply 11-14 V DC, 1.5 A
UNI 4 x GE, 1 x POTS, 1 x USB 2.0, 2.4G/5G Wi-Fi 6
NNI GPON
Maximum Power
Consumption*		 18 W
Antenna External antenna
Installation Mode Desktop
GPON Port • Class B+
• Receiver sensitivity: -27 dBm to -29 dB
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
• Wavelength Blocking Filter (WBF) of G.984.5
• Flexible mapping between the GEM port and TCONT
• GPON: consistent with the SN or password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing and dual-homing)
Ethernet Electrical Port • Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
• Limit on the number of learned MAC addresses
• MAC address learning
• Auto port speeds (10/100/1000 Mbit/s)
POTS Port • Maximum REN: 4
• G.711A/μ, G.729a/b, and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls (with the SIP protocol)
WLAN • IEEE 802.11 b/g/n/ax (2.4G)
• IEEE 802.11 a/n/ac/ax (5G)
• 2 x 2 MIMO (2.4G)
• 2 x 2 MIMO (5G)
• Antenna gain: 5 dBi
• WMM/Multiple SSIDs/WPS
• 2.4G and 5G concurrency
• Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G)
• Beamforming
• Band steering
• DL OFDMA
• DL MU-MIMO
• 1024 QAM
• 160 MHz frequency bandwidth
• WPA3
USB Port • USB 2.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA function
Power Saving COC V7

HUAWEI EG8145X6 WiFi Gpon ONU Router Optical Network Terminal

The device features four GE ports, one POTS port, and one USB port, and 2.4G and 5G Wi-Fi connectivity.

Home Network Features

Visualized home network management.
User-defined bandwidth allocation.
Wi-Fi optimization and roaming.
Wireless Operations and Maintenance (O&M).
Intelligent identification and anti-interference.

Smart Services

Wi-Fi shutdown scheduling.
Smart Wi-Fi sharing: Portal/802.1X authentication and SoftGRE-based sharing.

Smart O&M
IPTV video quality diagnosis.
eMDI.
Rogue ONT detection and self-regulation.
Call emulation, circuit test, and loop-line test.
PPPoE/DHCP simulation testing.
WLAN emulation.
